Product Introduction

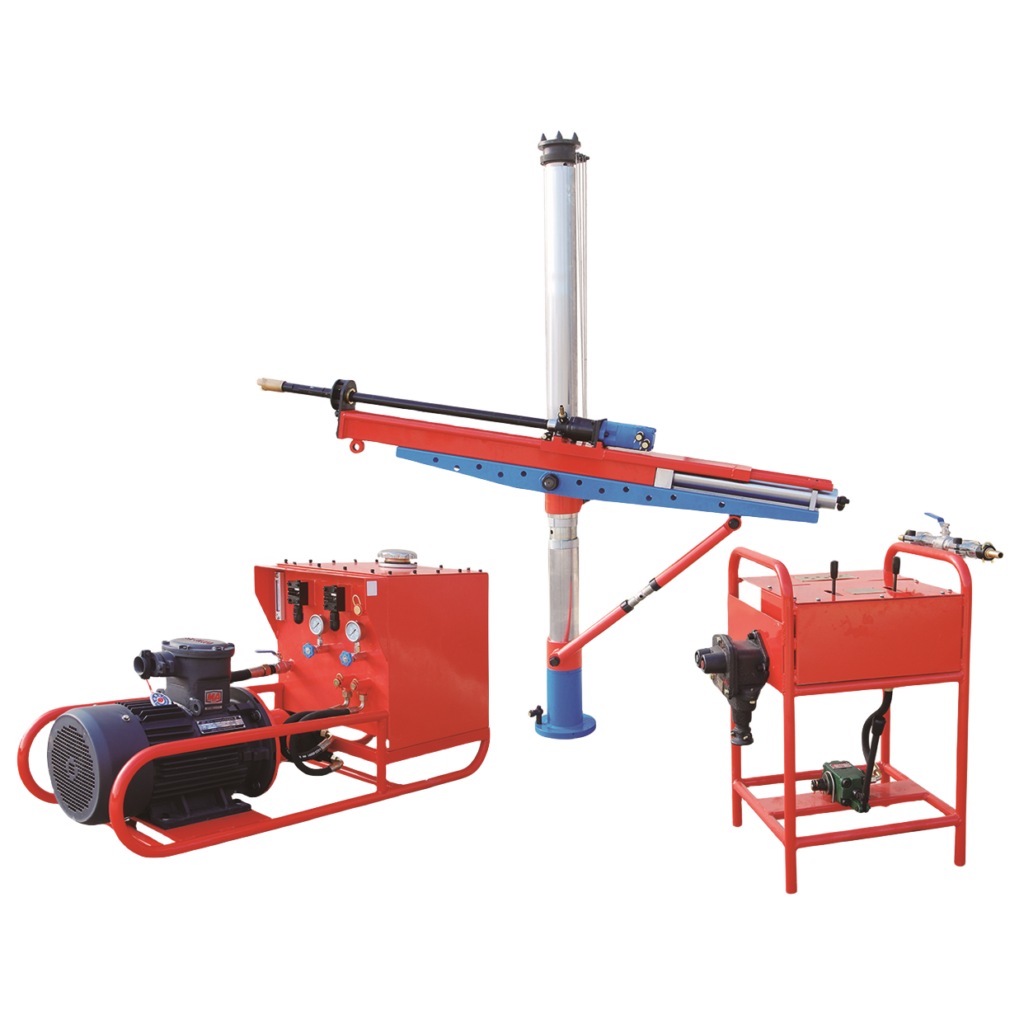

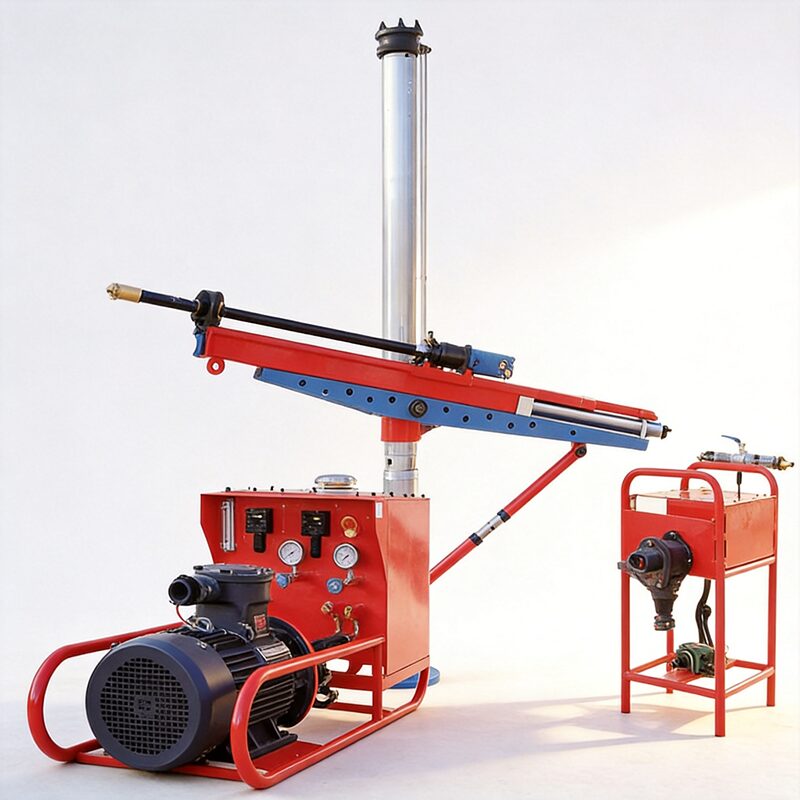

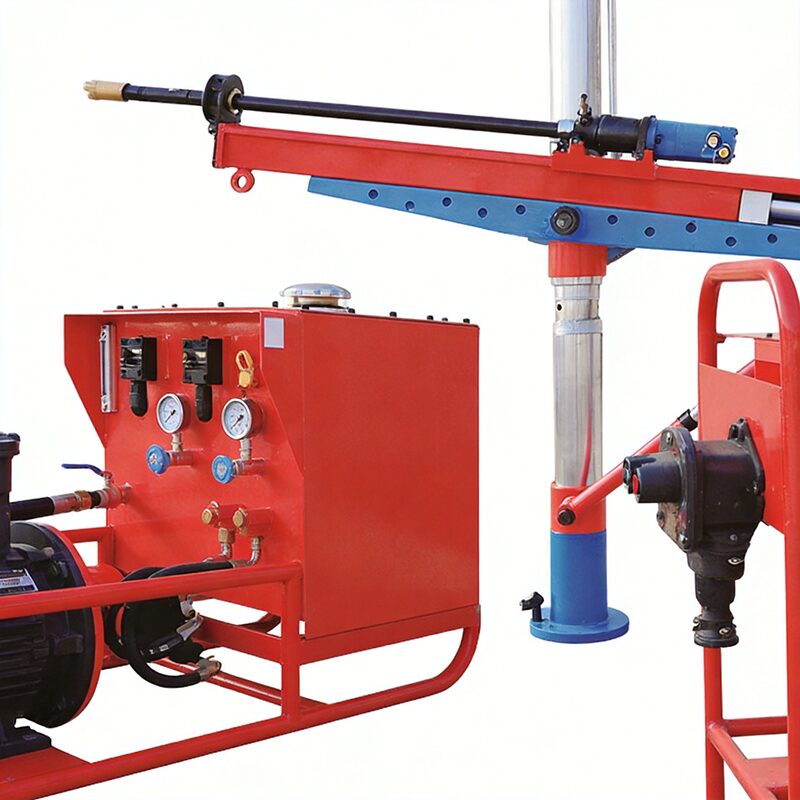

The ZY series frame-mounted hydraulic rotary drilling rig is special drilling equipment designed and manufactured by our company for the specific working conditions of mine roadways, and is suitable for drilling operations in various complex coal and rock roadways. According to the geological conditions of the drilling position and construction requirements, PDC bits or carbide bits can be used with geological drill rods or auger drill rods for rotary drilling, meeting various drilling process requirements such as water and gas detection, rock coring and geological survey in underground coal mines.

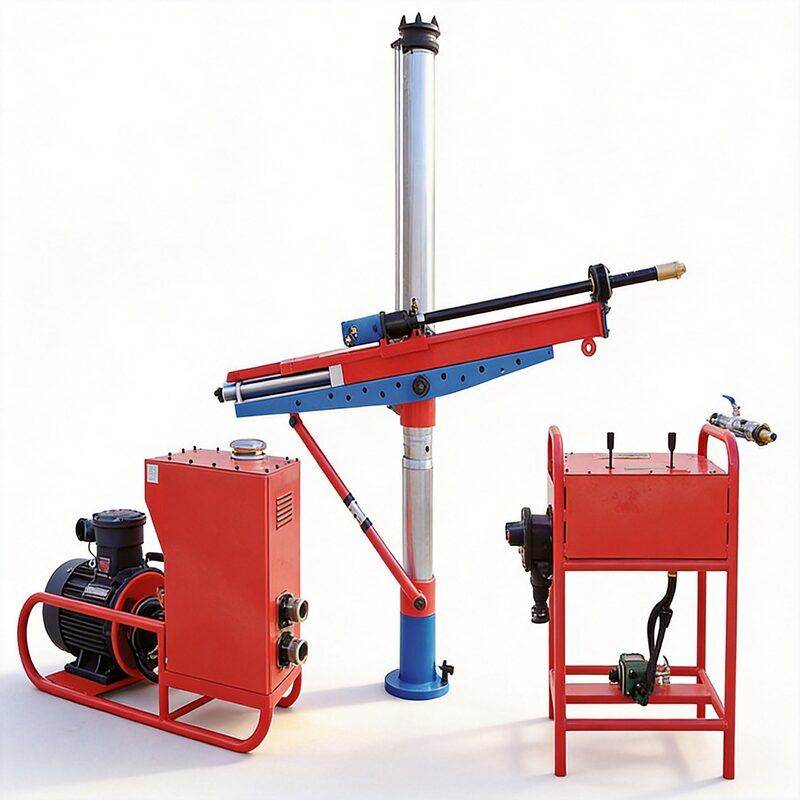

Product Features

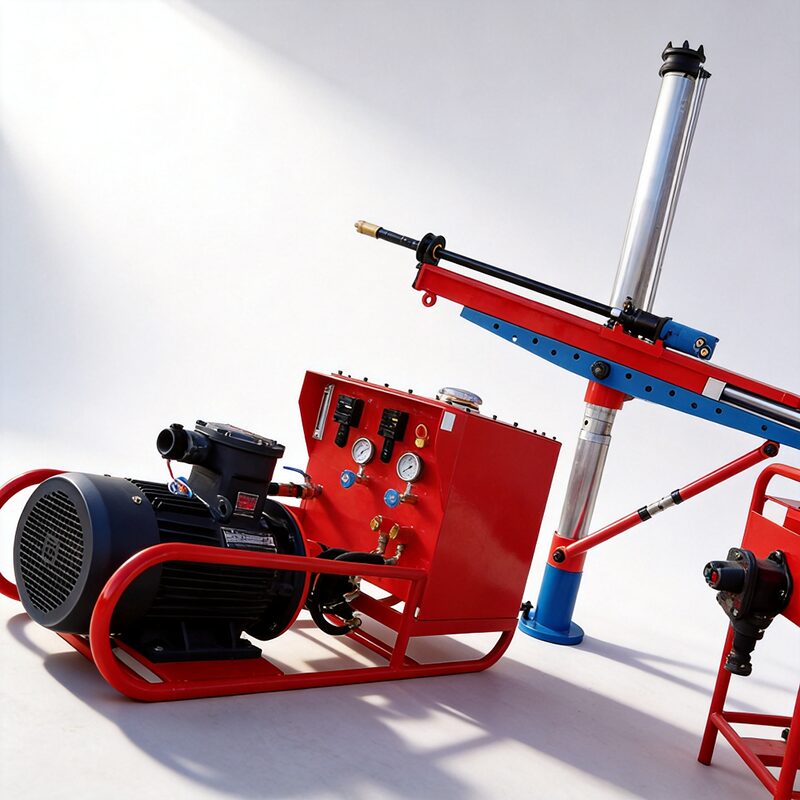

Extended Service Life:

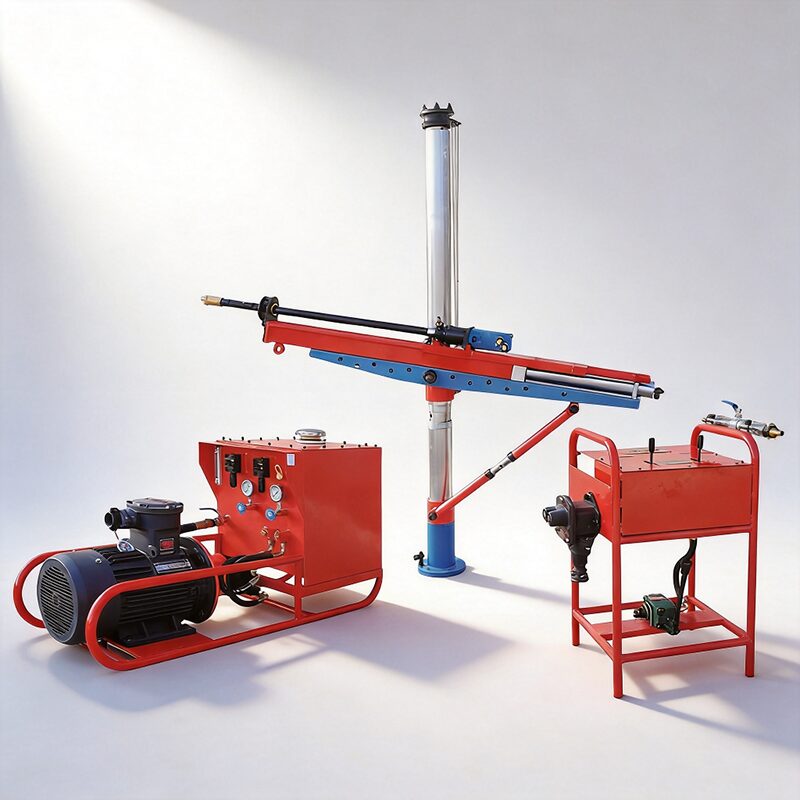

Reasonable Design:
| System Category | Parameter Item | Unit | ZYJ-420/200 | ZYJ-1000/190 | |
| Working pressure | MPa | ≤14 | ≤18 | ||
| Rated Torque | N·m | ≥420 | ≥1000 | ||
| Rated Speed | r/min | ≥200 | ≥190 | ||
| Rated Flow Rate | L/min | ≤50 | ≤83 | ||
| Thrust Force | KN | ≥20×95% | ≥40×95% | ||
| Return Speed | mm/min | ≥500×95% | ≥420×95% | ||
| Thrust Stroke | mm | ≥1100×95% | ≥1200×95% | ||
| Guide Length | mm | ≥1900×95% | ≥2225×95% | ||
| Maximum Working Height | mm | ≥800×95% | ≥1800×95% | ||
| Minimum Working Height | mm | ≥800×95% | ≥1000×95% | ||
| Machine Weight | Kg | ≤200×105% | ≤450×105% | ||
| No-Load Thrust Speed | mm/min | ≥250×95% | ≥210×95% | ||
| Flush Water Pressure | MPa | 0.6-1.2 | 0.6-1.2 | ||
| Drilling diameter | mm | Φ65-Φ115 | Φ65-Φ115 | ||
| Drilling speed | mm/min | ≥200 | ≥200 | ||
| Noise | Sound pressure level | dB(A) | ≤92 | ≤92 | |
| Sound power level | dB(A) | ≤108 | ≤108 | ||
| Overall dimensions | mm | (2000×385×2260)±20 | (2330×450×2260)±20 | ||
| pumping station | Rated pressure | MPa | ≥16 | ≥20 | |
| Rated flow | L/min | ≥55 | ≥90 | ||
| Motor model | – | YBK3-160L-4 | YBK3-200L-4 | ||
| Motor rated power | KW | 15 | 30 | ||
| Motor rated voltage | V | 380/660 | 660/1140 | ||
| Effective Fuel Tank Volume | L | ≥120 | ≥150 | ||
| Overall dimensions | mm | (1940×540×910)±20 | (1940×540×910)±20 | ||
| Weight of the machine | Kg | ≤280×105% | ≤480×105% | ||
| Control Console | Overall dimensions | mm | (590×645×825)±20 | (590×645×825)±20 | |
| Weight of the machine | Kg | ≤50×105% | ≤60×105% | ||
