Application Scope
It is suitable for grouting reinforcement projects including subways, railways, airports, expressway subgrades, high-speed rail projects, building foundations, foundation settlement treatment, basement anti-seepage, pipe jacking & backfill grouting, mine water plugging and tunnels. It supports cement-water glass double-liquid grouting, with single-liquid or double-liquid grouting modes optional.
Product Profile

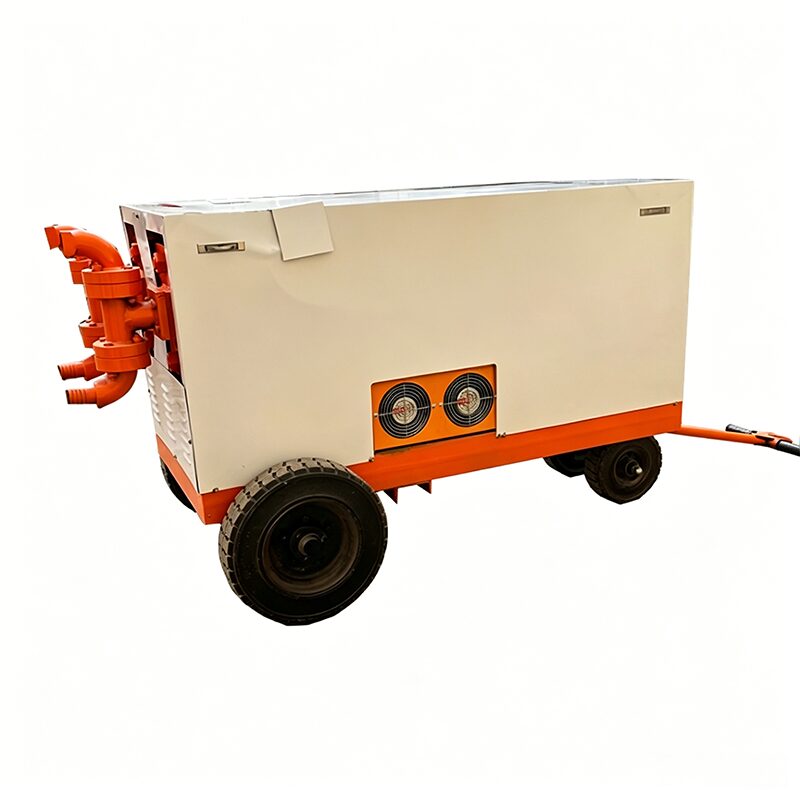

The double-liquid grouting pump is core construction equipment for reinforcement and water-sealing grouting in tunnels, subways, railways, highway subgrades, foundation beds, mines, water conservancy and building projects. It can simultaneously deliver two-component slurries such as cement slurry and water glass, accurately control slurry setting time, and realize high-pressure grouting, rapid water shutoff and foundation rock mass reinforcement.
Technical Parameter Table
| Product Model |
YHSYB–110/160 |
| Discharge Capacity |
7m³/h |
| Working Pressure |
0-16MPa |
| Motor Power |
11kW |
| Sound Power Level |
110dB(A) |
| Outlet Diameter |
32mm |
| Suction Inlet Diameter |
38mm |
| Overall Dimension |
1700700960mm |
| Total Machine Weight |
500kg |
