Product Introduction

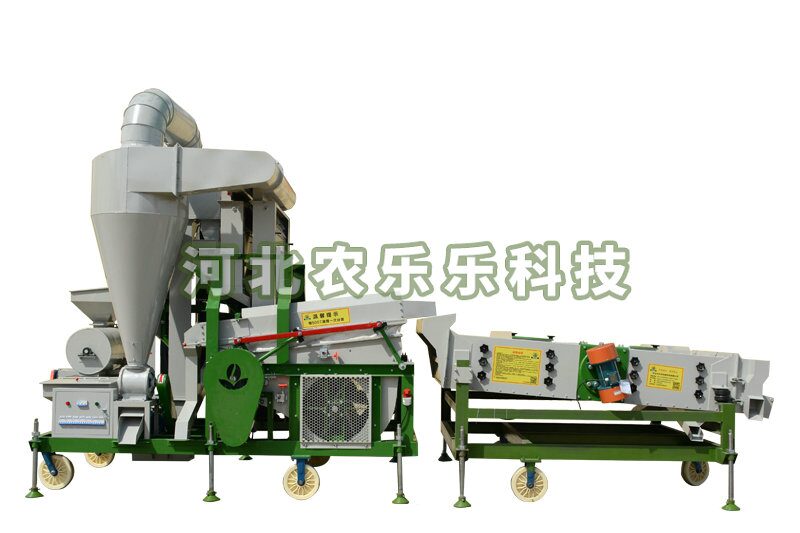

　　5XFZ-15DT  Single Specific Gravity Cleaner is a mobile cleaning machine integrating shelling, no crushing elevator, secondary air separation, dust removal, specific gravity selection, screening and grading. The chaff, chaff, dust, light impurities, arsenic seeds, bud seeds, worm eaten grains, mildewed grains, black powder and diseased grains, large impurities and small impurities in crops can be removed by a single processing. At the same time, the material is divided into large grains and small grains, which are discharged from different outlets.

Product Features

　　1. The machine uses a sheller, a hoist and a specific gravity table with a dedusting system, which makes the operation more environmentally friendly and provides closed feeding throughout the process;

　　2. This machine uses an ultra-low speed rice hopper without a crushing elevator, so the materials will not be broken during the lifting process, effectively reducing loss;

　　3. This machine uses a double vertical design air screen plus a double horizontal vortex dust remover to reasonably adjust the air volume, and there will be no valuable material in the light impurities;

　　4. This machine uses an enlarged dust remover with a diameter of 800mm, which has better dust removal effect and effectively improves the working environment;

　　5. This machine is equipped with a double specific gravity table, which can remove 98% of the stubborn oats and other side by side impurities during wheat seed processing. The vibrating screen is 1.5m wide and 2.4m long, and its separation effect is more thorough when the vibrating screen is lengthened.

　　6. It is safer to install threading tubes on all cables of the machine, and the modular design can reduce the power consumption by 9 kilowatts per hour;

         7. The machine is simple in operation, low in failure rate, good in effect and widely applicable.

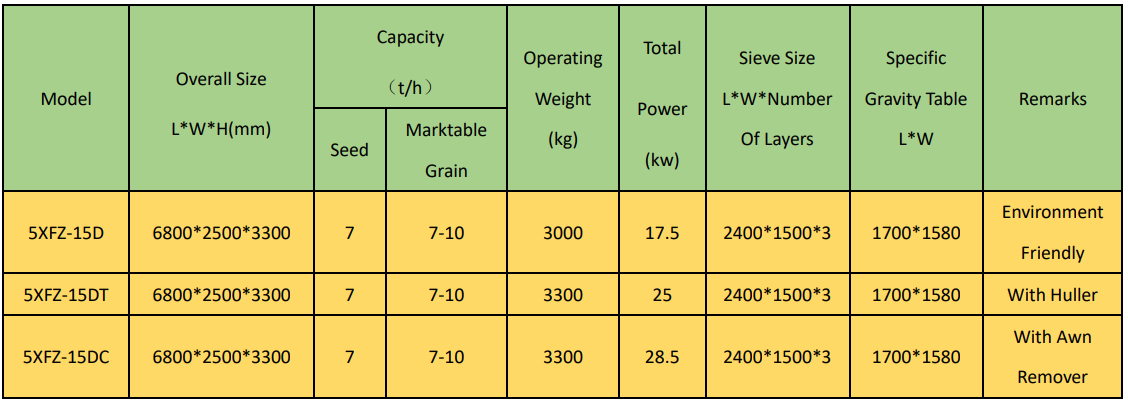

Main Parameter
